BANCS D'ESSAIS POUR LES EQUIPEMENTIERS

Nos principales réalisations en bancs d'essais de servo-commandes de vol



Rotary EMA test bench

Stacks Image 455

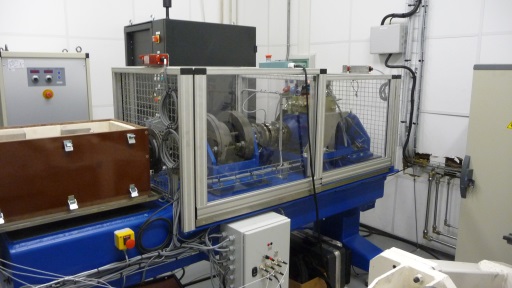

Bench : Rotary EMA test bench
Customer : ***
Year : 2013
Program : FRACASS
Description : A320 Aileron rotary EMA bench with representativeness of kinematics, inertias, stiffnesses, temperatures and antagonist loads with servo controlled motor and control and monitoring bay


Aileron EMA test bench

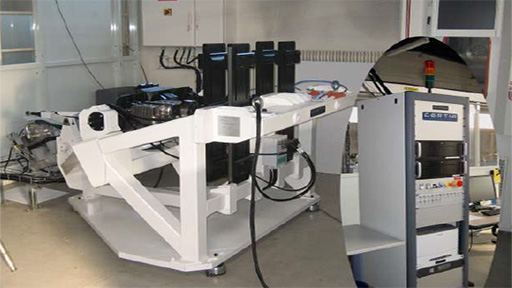

Stacks Image 51

Customer : SAFRAN
Year : 2009
Program : COVADIS
Description : A320 Aileron EMA bench with representativeness of kinematics, inertias , stiffnesses and antagonist loads with servo controlled jacks, hydraulic power plant and control and monitoring bay


Stacks Image 172

Customer : GOODRICH ACTUATION SYSTEMS
Year : 2008
Program : MOET
Description : A320 Aileron EMA bench with representativeness of kinematics, inertias , stiffnesses and antagonist loads with servo controlled jacks and control and monitoring bay



Servo controls A400M test bench

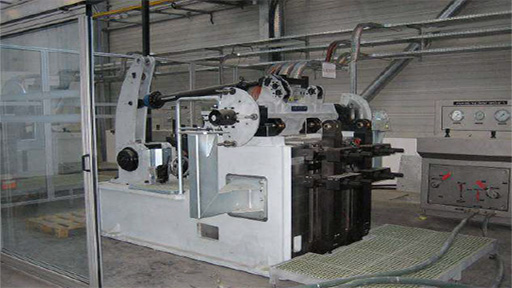

Stacks Image 191

Duplex Aileron A400M test bench
Customer : AIRBUS
Year : 2006
Program : AIRBUS A400M
Description : A400M Aileron bench with representativeness of kinematics, inertias , stiffnesses and antagonist loads with torsion bar device

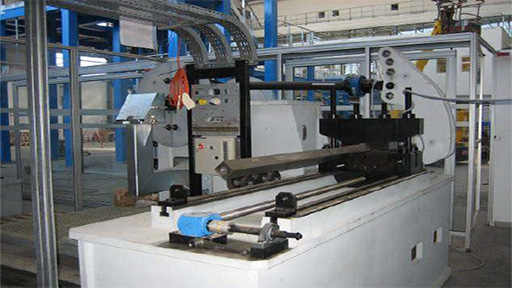

Stacks Image 193

Spoiler A400M test bench
Customer : AIRBUS
Year : 2006
Program : AIRBUS A400M
Description : A400M Spoiler bench with representativeness of kinematics, inertias , stiffnesses and antagonist loads with torsion bar device


Stacks Image 197

Duplex Elevator A400M test bench
Customer : AIRBUS
Year : 2006
Program : AIRBUS A400M
Description : A400M Elevator bench with representativeness of kinematics, inertias , stiffnesses and antagonist loadswith torsion bar device



Stacks Image 195

Duplex Rudder A400M test bench
Customer : AIRBUS
Year : 2006
Program : AIRBUS A400M
Description : A400M Rudder bench with representativeness of kinematics, inertias , stiffnesses and antagonist loads with torsion bar device



Servo controls A380 test bench

Stacks Image 240

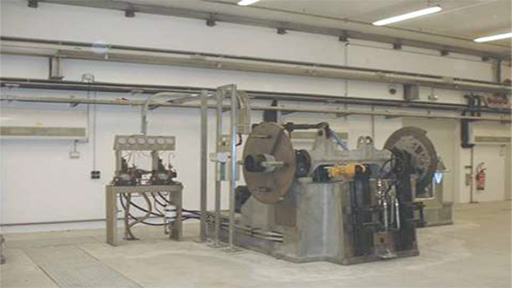

Duplex Aileron A380 test bench
Customer : AIRBUS
Year : 2003
Program : AIRBUS A380
Description : A380 Aileron bench with representativeness of kinematics, inertias , stiffnesses and antagonist loads with torsion bar device



Stacks Image 244

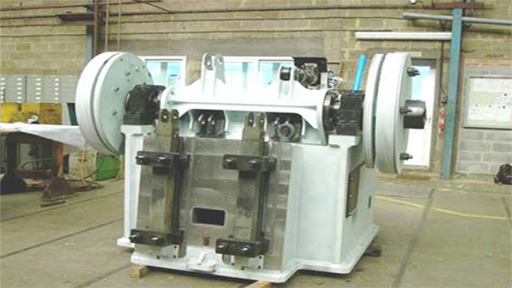

Duplex Aileron A380 test bench
Customer : GOODRICH ACTUATION SYSTEMS
Year : 2003
Program : AIRBUS A380
Description : A380 Aileron bench with representativeness of kinematics, inertias , stiffnesses and antagonist loads with both torsion bar device and servo controlled hydraulic jacks and control and monitoring device


Stacks Image 257

Duplex Elevator A380 test bench
Customer : AIRBUS
Year : 2003
Program : AIRBUS A380
Description : A380 Elevator bench with representativeness of kinematics, inertias , stiffnesses and antagonist loads with torsion bar device

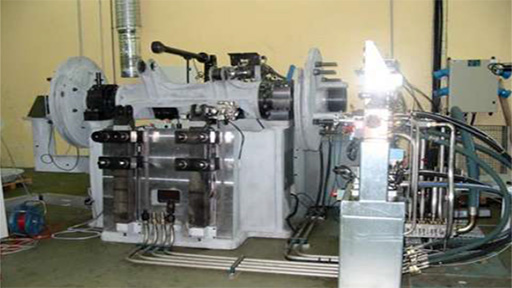

Stacks Image 269

Duplex Elevator A380 test bench
Customer : GOODRICH ACTUATION SYSTEMS
Year : 2003
Program : AIRBUS A380
Description : A380 Elevator bench with representativeness of kinematics, inertias , stiffnesses and antagonist loads with both torsion bar device and servo controlled hydraulic jacks and control and monitoring device


Stacks Image 280

Duplex Rudder A380 test bench
Customer : AIRBUS
Year : 2003
Program : AIRBUS A380
Description : A380 Rudder bench with representativeness of kinematics, inertias , stiffnesses and antagonist loads with torsion bar device



Stacks Image 292

Duplex Rudder A380 test bench
Customer : GOODRICH ACTUATION SYSTEMS
Year : 2003
Program : AIRBUS A380
Description : A380 Rudder bench with representativeness of kinematics, inertias , stiffnesses and antagonist loads with both torsion bar device and servo controlled hydraulic jacks and control and monitoring device



Stacks Image 310

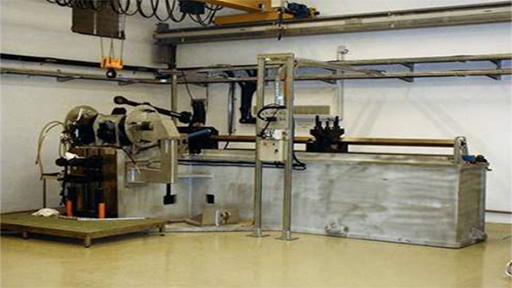

Spoiler A380 test bench
Customer : AIRBUS
Year : 2003
Program : AIRBUS A380
Description : A380 Spoiler bench with representativeness of kinematics, inertias , stiffnesses and antagonist loads with torsion bar device






Stacks Image 337

Servo actuators acceptance test bench
Customer : AIR FRANCE INDUSTRIES
Year : 2003
Program : multi-programs
Description : Acceptance tests for large range of servo hydraulic actuators with hydraulic control panel



Stacks Image 341

A380 servo actuators acceptance test bench
Customer : GOODRICH
Year : 2003
Program : AIRBUS A380
Description : Acceptance tests for A380 Aileron, Elevator and Rudder servo actuators with hydraulic control panel and monitoring bay

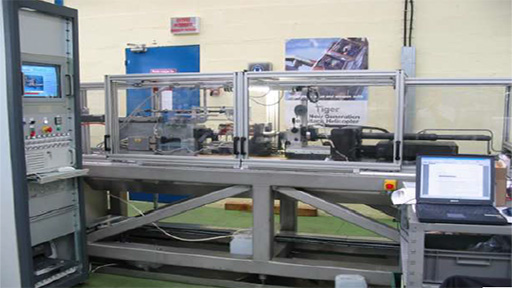

Stacks Image 349

TIGRE TRA / MRA acceptance test bench
Customer : GOODRICH
Year : 2003
Program : EUROCOPTER TIGRE
Description : Automatic acceptance tests for TIGRE helicopter Main and Tail Rotor Actuators with integrated hydraulic power plant and control and monitoring bay

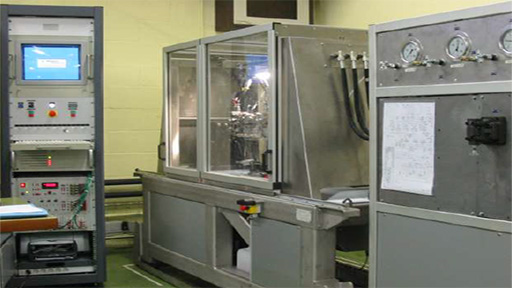

Stacks Image 353

NH90 MRA acceptance test bench
Customer : GOODRICH
Year : 2003
Program : NH90
Description : Automatic acceptance tests for NH90 helicopter Main Rotor Actuator with integrated hydraulic power plantand control and monitoring bay


Stacks Image 369

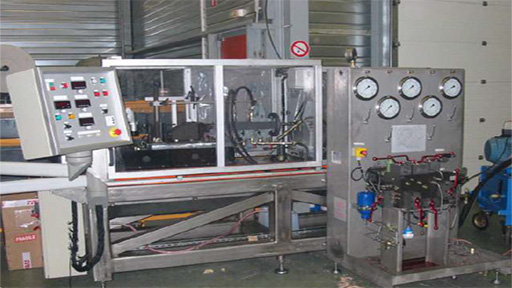

Helicopter servo actuators acceptance test bench
Customer : GOODRICH
Year : 2003
Program : multi-programs
Description : Acceptance tests for helicopter servo actuators with hydraulic control panel and monitoring bay



Stacks Image 373

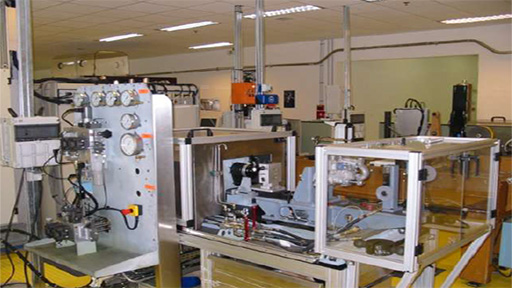

TIGRE TRA acceptance test bench
Customer : GOODRICH
Year : 2002
Program : EUROCOPTER TIGRE
Description : Acceptance tests for TIGRE Tail Rotor Actuator with hydraulic control panel and monitoring bay


Stacks Image 388

A320 servo actuators acceptance test bench
Customer : GOODRICH
Year : 2001
Program : AIRBUS A320
Description : Acceptance tests for A320 Aileron, Elevator and Spoiler servo actuators with hydraulic control panel and monitoring bay

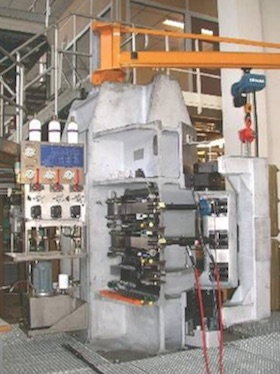

Stacks Image 405

Banc triplex rudder
Customer : AIRBUS
Year : 2002


Stacks Image 418

Banc triplex rudder
Customer : TRW
Year : 1999
Program : AIRBUS A340-600



Stacks Image 420

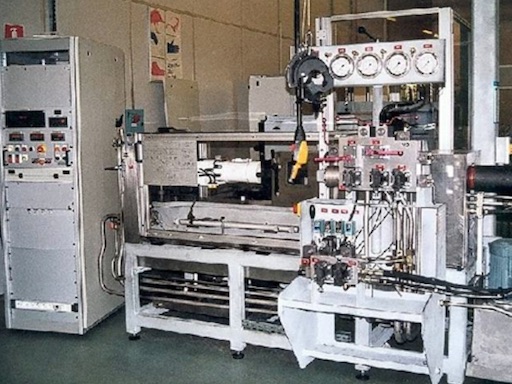

Banc recette rudder
Customer : TRW
Year : 1999
Program : AIRBUS A340-600

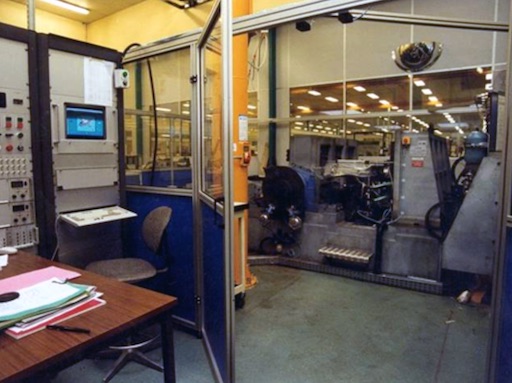

Stacks Image 422

Banc triplex rudder
Customer : TRW
Year : 1996
Program : AIRBUS A330-200


Stacks Image 424

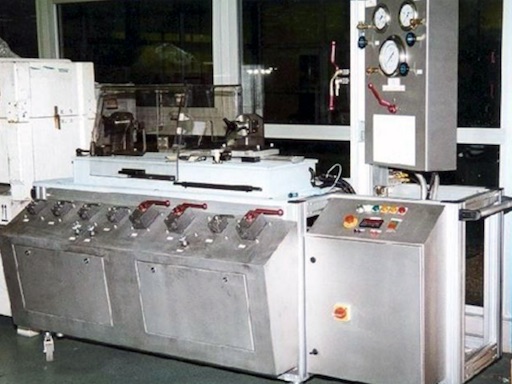

Banc recette rudder
Customer : TRW
Year : 1996
Program : AIRBUS A330-200
